PA3CLQ's Leuke Linken Nr. 404



Has anyone ever seen a sideswiper like this before?

Darrel, AA7FV wrote:
Hi Jan,
I have a question for you and your readers.

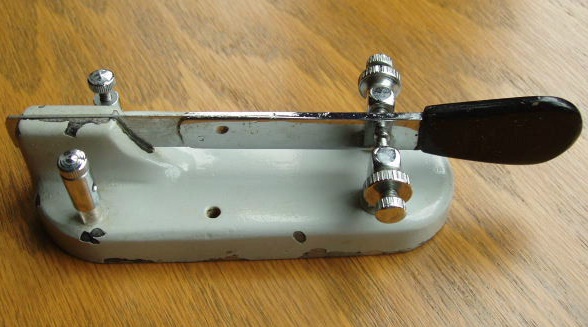

Last month, this unusual sideswiper key was offered on Ebay:
Have you ever come across a key like this:




There are more pics of it at:
http://www.ebay.com/itm/Vintage-key-/141791894408?nma=true&si=TETUTeg7QPtguvP2O0OG6n7x05I%253D&orig_cvip=true&rt=nc&_trksid=p2047675.l2557

(although the pics may not be there for much longer, as the auction ended last month.)
I did bid on it, but didn't win the auction.

In some ways the key looks home made, but it also looks manufactured.

Has anyone ever seen a sideswiper like this before?
73, Darrel, aa7fv.



Ever heard of THE YASME FOUNDATION?

www.yasme.org



RFI on 20 Meters

There are some other fairly recent posts on this topic.

I would recommend reading this excellent primer:

http://audiosystemsgroup.com/RFI-Ham.pdf

Can you confirm that issue this goes away at very low power?

If not, you are barking up the wrong tree.

    Please do not think a snap-on choke on a cable eliminated that source of RF.

It probably did not.

You often need multiple turns, as well as the correct type of snap on - they are not all the same.

Mix 31 is generally appropriate, and often multiple turns through the core are needed to achieve sufficient Z.

    The ground rod issue is usually irrelevant to your RF issue, however, having a separate station ground rod not connected to house ground is generally not advised.

Bond everything together at the home's main ground.

You can google good articles on this topic, often by the same fellow that wrote the EMI primer above.

He's a smart cookie and often posts here.

    If you can disconnect non-critical cables temporarily to determine where most of the ingress is, that will help.

Make sure the USB cables and any audio cables are shielded high quality types.

(You can swap suspect ones.

I find this one to be good and reasonably priced:

http://www.amazon.com/Tripp-Lite-Hi-Speed-Ferrite-U023-006/dp/B003MQ29B2

By the way, don't think that the ferrite cores built into those USB cables means you do not need to add one.

The ones built-in are optimized for VHF/UHF suppression, not HF.

    Otherwise, start with multiple turns through sufficiently large mix 31 cores on mouse, keyboard, USB, AC supply,audio, and network cables and see where that leaves you.

People here can probably help once you have done the initial homework.

73, Drew K3PA





GROWING UP WITH CANADA Railroad

This booklet by CN GROWING UP WITH CANADA is out of the CN Rly archives CN-HQs Montreal,Que.

It picture was not likely taken on the GRAND TRUNK RAILWAY- Lindsay to Kinmount-Haliburton Railway line - However, I expect there were similarities in both the inspection car and crew on the Haliburton Sub-division in that era!

I will put a copy in the HISTORICAL KINMOUNT STATION RAILWAY MUSEUM.

Gren Schraderg.

REM :

See eventual:

http://www.torontopubliclibrary.ca/search.jsp;jsessionid=EoKvW48xk9FCxza0vBtTk4Xi.tplapp-p-2b?Ntt=Railroads--Canada--History.&Ntk=Subject_Search_Interface

http://www.torontopubliclibrary.ca/detail.jsp?Entt=RDM2717071&R=2717071





David & Jack and Others;

I am sending you a SKILLMAN KEY for display in the GLASS SHOW CASE IN THE HISTORICAL KINMOUNT RAILWAY STATION MUSEUM.

This is a SKILLMAN Semi-automatic speed key.

The illustration shows it without and with the clear plastic cover.

It is rather Unique and they appear to be rather RARE!

My SKILLMAN does not HAVE any name on it. Just JAPAN moulded on the bottom!!!!!

I have put a cord and landline brass wedge on this Skillman so you can plug it in the KEY on a K.OB ( KEY ON BOARD) practice set and demonstrate how it works.

Just the same as a Landline Semi-automatic speed key Commonly known as a BUG

Unlike a VIBROPLEX semi-automatic speed key (BUG) It does not have a CLOSURE SWITCH.

The SKILLMAN is a well machined Telegraph instrument - very classy looking too!

It will look good on display with the other landline Telegraph instruments!

G.L.Schrader Amateur Radio Operator VE3GLS









73, your Editor PA3CLQ



-30-
